Time series regression belongs to the class of supervised learning and is defined as the task of predicting a continuous target variable based on time series input data.
The github repository of sktime (accessed: 16 09 26) categorizes its implemented time series regression methods into the following categories:
Again, we observe that these categories can directly be mapped to those in Section 7.1 and Chapter 8.
An easy baseline method for time series regression is to use a \(k\)-nearest neighbors regressor with a suitable distance measure for time series, e.g. dynamic time warping. In contrast to nearest neighbor in classification, where the predicted label is determined by e.g. a majority vote of the nearest neighbors, in nearest neighbor regression the predicted value is typically computed as the average (or weighted average) of the target values of the nearest neighbors. This is implemented in sktime as KNeighborsTimeSeriesRegressor.
Also tree-based methods like random forests can be adapted for time series regression by simply taking e.g. the mean value of the target variable of the samples in a leaf node as the predicted value. This is implemented in sktime as TimeSeriesForestRegressor. Note that this is (as of v1.1.0) not a very parametrizable implementation; the only tunable parameter is the number of estimators (trees) and the minimum width of the intervals.
In this section we will have a brief look at a deep-learning based method in the context of time series regression, namely a convolutional neural network (CNN) based regressor.
Convolutional Neural Networks (CNN), by design, are able to capture local patterns in time series data through the use of convolutional layers. These layers apply filters that slide over the input data, allowing the model to learn local temporal patterns that are important. At the same time, CNNs can also capture global patterns by stacking multiple convolutional layers and using pooling operations. This hierarchical structure enables the model to learn both local and global features of the time series data, making CNNs versatile for various time series tasks.
Zhao et al. (2017) propose a CNN architecture specifically designed for time series classification. The architecture consists of a series of 1D convolutional layers followed by a pooling layer. The convolutional layers are responsible for extracting local features from the time series data, while the pooling layer helps to reduce the dimensionality and capture more global patterns. After the convolutional and pooling layers, the model includes a fully connected layer (the authors refer to it as a feature layer) that maps the extracted features to \(n\) output nodes, where \(n\) is the number of classes. The node with the highest value determines the predicted class.
For regression, sktime provides CNNRegressor, which is based on the architecture described in Zhao et al. (2017). To adapt the architecture for regression tasks, the final layer is modified to have a single output node with a linear activation function that predicts a continuous value instead of class probabilities.
In this example, we will use the IEEEPPG dataset Tan et al. (2020), which focuses on heart rate monitoring during physical exercise using wrist-type photoplethysmographic (PPG) signals. The dataset consists of two PPG signals and three-axis acceleration signals. The goal is to predict ECG values from the PPG and acceleration signals. All signals were sampled at 125 Hz.
import tempfile
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import requests
from sklearn.metrics import root_mean_squared_error
from sklearn.preprocessing import MinMaxScaler
from sktime.datasets import load_from_tsfile_to_dataframe
from sktime.regression.deep_learning import CNNRegressor
from tensorflow.keras.optimizers import Adam
from tslearn.preprocessing import TimeSeriesScalerMinMax
np.random.seed(42) # for reproducibilitydef download_data(url: str) -> tuple:
"""Download and load a time series dataset from a URL.
Args:
url: URL to the .ts file.
Returns:
Tuple of (X, y) DataFrames/Series.
"""
with requests.get(url, stream=True) as r:
r.raise_for_status()
with tempfile.NamedTemporaryFile(suffix=".ts", delete=False) as f:
for chunk in r.iter_content(chunk_size=8192):
f.write(chunk)
fp = f.name
X, y = load_from_tsfile_to_dataframe(fp)
return X, y
testdata_url = "https://zenodo.org/records/3902710/files/IEEEPPG_TEST.ts?download=1"
traindata_url = "https://zenodo.org/records/3902710/files/IEEEPPG_TRAIN.ts?download=1"
X_test_raw, y_test_raw = download_data(testdata_url)
X_train_raw, y_train_raw = download_data(traindata_url)
y_train_raw = y_train_raw.astype(float)
y_test_raw = y_test_raw.astype(float)First we look at the raw training data. Each row corresponds to one sample in the dataset. The data comes in five columns, where each column represents a different signal source (PPG or acceleration signal). Note that each entry in the DataFrame is itself a time series.
X_train_raw| dim_0 | dim_1 | dim_2 | dim_3 | dim_4 | |
|---|---|---|---|---|---|
| 0 | 0 -23.0 1 -24.0 2 -26.5 3 -27.... | 0 4.0 1 6.0 2 3.0 3 3.... | 0 -0.0702 1 -0.0702 2 -0.0546 3 ... | 0 0.3432 1 0.3588 2 0.3666 3 ... | 0 0.9594 1 0.9438 2 0.9360 3 ... |
| 1 | 0 -20.5 1 -19.0 2 -20.0 3 -19.... | 0 -37.0 1 -38.5 2 -40.5 3 -41.... | 0 0.4056 1 0.4212 2 0.4368 3 ... | 0 0.6084 1 0.6162 2 0.6084 3 ... | 0 0.5148 1 0.4992 2 0.4758 3 ... |
| 2 | 0 22.0 1 23.5 2 22.5 3 23.... | 0 12.5 1 13.5 2 11.5 3 13.... | 0 0.4758 1 0.4758 2 0.4758 3 ... | 0 0.6864 1 0.6864 2 0.6864 3 ... | 0 0.3900 1 0.3900 2 0.3978 3 ... |
| 3 | 0 -5.5 1 -5.5 2 -6.5 3 -6.... | 0 -1.0 1 -0.5 2 -1.5 3 -1.... | 0 0.4602 1 0.4602 2 0.4602 3 ... | 0 0.6708 1 0.6786 2 0.6708 3 ... | 0 0.3978 1 0.4134 2 0.4056 3 ... |
| 4 | 0 30.5 1 27.0 2 26.0 3 24.... | 0 74.5 1 70.0 2 67.0 3 62.... | 0 0.6162 1 0.6162 2 0.6240 3 ... | 0 0.7098 1 0.6942 2 0.6786 3 ... | 0 0.3978 1 0.3900 2 0.3744 3 ... |
| ... | ... | ... | ... | ... | ... |
| 1763 | 0 130.0 1 142.5 2 148.0 3 ... | 0 68.0 1 86.0 2 100.5 3 ... | 0 -0.0858 1 -0.0936 2 -0.1092 3 ... | 0 0.6084 1 0.6240 2 0.6162 3 ... | 0 0.2340 1 0.2418 2 0.2418 3 ... |
| 1764 | 0 -33.5 1 -36.0 2 -38.0 3 -38.... | 0 32.0 1 26.0 2 21.0 3 18.... | 0 -0.2340 1 -0.2418 2 -0.2262 3 ... | 0 0.2496 1 0.2340 2 0.1872 3 ... | 0 1.0998 1 1.1154 2 1.1076 3 ... |
| 1765 | 0 -38.0 1 -41.5 2 -43.5 3 -44.... | 0 21.5 1 15.5 2 11.0 3 7.... | 0 -0.1716 1 -0.1638 2 -0.1560 3 ... | 0 0.0156 1 0.0312 2 0.0546 3 ... | 0 0.8034 1 0.8034 2 0.8034 3 ... |
| 1766 | 0 111.5 1 100.5 2 85.5 3 ... | 0 155.5 1 147.0 2 134.0 3 ... | 0 -0.0780 1 -0.1092 2 -0.1326 3 ... | 0 0.1794 1 0.1170 2 0.0624 3 ... | 0 0.9594 1 0.9672 2 0.9438 3 ... |
| 1767 | 0 66.5 1 59.5 2 51.5 3 44.... | 0 95.5 1 90.0 2 84.0 3 77.... | 0 0.1638 1 0.1716 2 0.1794 3 ... | 0 0.3978 1 0.4134 2 0.4290 3 ... | 0 0.7956 1 0.7800 2 0.7566 3 ... |
1768 rows × 5 columns
y_train_rawarray([ 74.33920705, 76.35746606, 77.14285714, ..., 156.25 ,

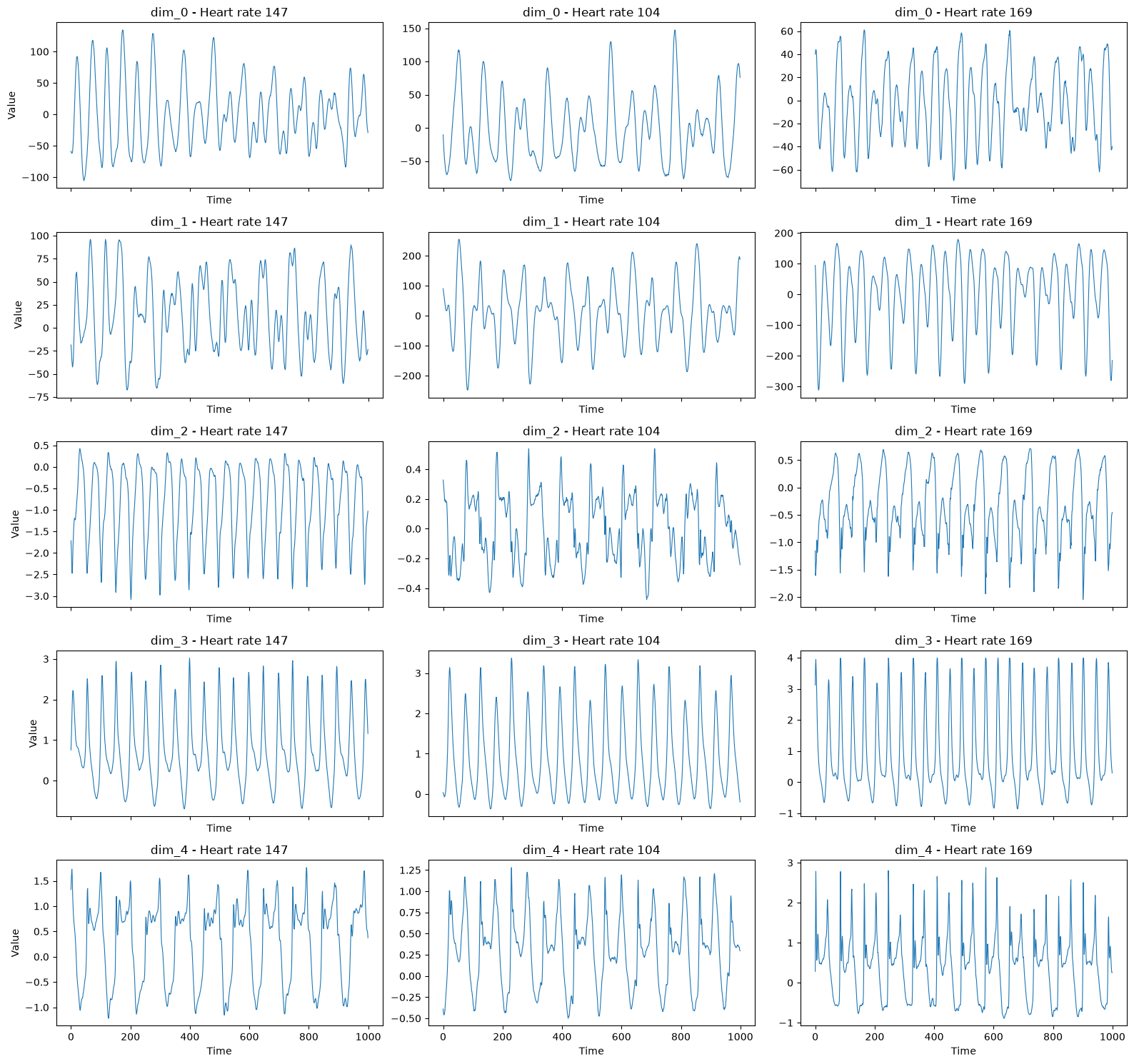

155.4404 , 154.0041 ], shape=(1768,))To get a clearer picture, we can plot the signals of some of the training samples.
sampled = X_train_raw.sample(3, random_state=1337).sort_index()
fig, axes = plt.subplots(
nrows=sampled.shape[1], ncols=3, figsize=(16, 3 * sampled.shape[1]), sharex=True
)
for row_idx, col in enumerate(sampled.columns):
for col_idx, (i, row) in enumerate(sampled.iterrows()):
axes[row_idx, col_idx].plot(row[col].values, label=f"Sample {i}", linewidth=0.8)
axes[row_idx, col_idx].set_title(f"{col} - Heart rate {y_train_raw[i]:.0f}")
axes[row_idx, col_idx].set_xlabel("Time")
axes[row_idx, 0].set_ylabel("Value")
plt.tight_layout()
plt.show()

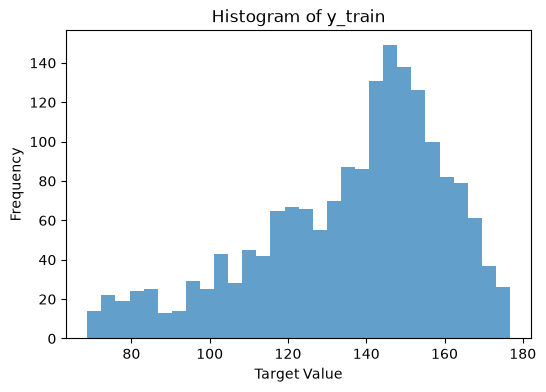

The following plot shows the distribution of the target values in the training set.
plt.figure(figsize=(6, 4))
plt.hist(y_train_raw, bins=30, alpha=0.7)
plt.xlabel("Target Value")
plt.ylabel("Frequency")
plt.title("Histogram of y_train")
plt.show()
To feed the data into the CNN, we first need to convert the dataframe into a so-called tensor (in this case a 3D array).
def convert_df_to_tensor(df: pd.DataFrame) -> np.ndarray:
"""Convert a DataFrame of time series to a 3D numpy tensor.
Args:
df: DataFrame where each cell contains a time series.
Returns:
3D array of shape (n_samples, ts_length, n_features).
"""
tensor = np.array(
[[df.iloc[i, j].values for j in range(df.shape[1])] for i in range(len(df))]
)
tensor = np.transpose(tensor, (0, 2, 1))
for i, j in zip(range(len(df)), range(len(df.columns))):
assert np.array_equal(df.iloc[i, j].values, tensor[i, :, j])
return tensor
X_train_tensor = convert_df_to_tensor(X_train_raw)
X_test_tensor = convert_df_to_tensor(X_test_raw)Let us check the shapes orf the resulting tensors.
print(X_train_tensor.shape)
print(X_test_tensor.shape)(1768, 1000, 5)
(1328, 1000, 5)The training data set has 1768 samples, each consisting of 5 channels (PPG and acceleration signals) with a length of 1000 time steps (which are 8 seconds at 125 Hz).
Neural networks are generally trained on normalized data. We will use a leaky ReLU activation function in our CNN, which works best with input data within a [0, 1] range.
Unfortunately the TimeSeriesScalerMinMax from tslearn needs the data in the shape (n_samples, n_timestamps, n_channels), while the CNN expects (n_samples, n_channels, n_timestamps), so we need to swap the last two axes again after scaling.
scaler_x = TimeSeriesScalerMinMax()
X_train = scaler_x.fit_transform(X_train_tensor, per_feature=True)
X_test = scaler_x.transform(X_test_tensor, per_feature=True)
scaler_y = MinMaxScaler()
y_train = scaler_y.fit_transform(y_train_raw.reshape(-1, 1))
y_test = scaler_y.transform(y_test_raw.reshape(-1, 1))
X_train = np.transpose(X_train, (0, 2, 1))
X_test = np.transpose(X_test, (0, 2, 1))print(X_train.shape)
print(X_test.shape)(1768, 5, 1000)
(1328, 5, 1000)The CNNRegressor from sktime can now be used to create and train the convolutional neural network for time series regression.
regressor = CNNRegressor(
activation="linear",
activation_hidden="leaky_relu",
batch_size=64,
metrics=[],
n_conv_layers=5,
n_epochs=80,
optimizer=Adam(),
random_state=42,
verbose=True,
)
regressor.fit(X_train, y_train)Model: "functional_1"
┏━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━┓ ┃ Layer (type) ┃ Output Shape ┃ Param # ┃ ┡━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━┩ │ input_layer_1 (InputLayer) │ (None, 1000, 5) │ 0 │ ├─────────────────────────────────┼────────────────────────┼───────────────┤ │ conv1d_5 (Conv1D) │ (None, 994, 6) │ 216 │ ├─────────────────────────────────┼────────────────────────┼───────────────┤ │ average_pooling1d_5 │ (None, 331, 6) │ 0 │ │ (AveragePooling1D) │ │ │ ├─────────────────────────────────┼────────────────────────┼───────────────┤ │ conv1d_6 (Conv1D) │ (None, 325, 12) │ 516 │ ├─────────────────────────────────┼────────────────────────┼───────────────┤ │ average_pooling1d_6 │ (None, 108, 12) │ 0 │ │ (AveragePooling1D) │ │ │ ├─────────────────────────────────┼────────────────────────┼───────────────┤ │ conv1d_7 (Conv1D) │ (None, 102, 12) │ 1,020 │ ├─────────────────────────────────┼────────────────────────┼───────────────┤ │ average_pooling1d_7 │ (None, 34, 12) │ 0 │ │ (AveragePooling1D) │ │ │ ├─────────────────────────────────┼────────────────────────┼───────────────┤ │ conv1d_8 (Conv1D) │ (None, 28, 12) │ 1,020 │ ├─────────────────────────────────┼────────────────────────┼───────────────┤ │ average_pooling1d_8 │ (None, 9, 12) │ 0 │ │ (AveragePooling1D) │ │ │ ├─────────────────────────────────┼────────────────────────┼───────────────┤ │ conv1d_9 (Conv1D) │ (None, 3, 12) │ 1,020 │ ├─────────────────────────────────┼────────────────────────┼───────────────┤ │ average_pooling1d_9 │ (None, 1, 12) │ 0 │ │ (AveragePooling1D) │ │ │ ├─────────────────────────────────┼────────────────────────┼───────────────┤ │ flatten_1 (Flatten) │ (None, 12) │ 0 │ ├─────────────────────────────────┼────────────────────────┼───────────────┤ │ dense_1 (Dense) │ (None, 1) │ 13 │ └─────────────────────────────────┴────────────────────────┴───────────────┘
Total params: 3,805 (14.86 KB)
Trainable params: 3,805 (14.86 KB)
Non-trainable params: 0 (0.00 B)
Epoch 1/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 3s 19ms/step - loss: 0.0801 Epoch 2/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 21ms/step - loss: 0.0457 Epoch 3/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 18ms/step - loss: 0.0435 Epoch 4/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 19ms/step - loss: 0.0415 Epoch 5/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 17ms/step - loss: 0.0387 Epoch 6/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 18ms/step - loss: 0.0369 Epoch 7/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 18ms/step - loss: 0.0357 Epoch 8/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 19ms/step - loss: 0.0344 Epoch 9/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 21ms/step - loss: 0.0336 Epoch 10/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 18ms/step - loss: 0.0320 Epoch 11/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 18ms/step - loss: 0.0310 Epoch 12/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 17ms/step - loss: 0.0297 Epoch 13/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 18ms/step - loss: 0.0282 Epoch 14/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 15ms/step - loss: 0.0265 Epoch 15/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0236 Epoch 16/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 17ms/step - loss: 0.0222 Epoch 17/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 17ms/step - loss: 0.0205 Epoch 18/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0191 Epoch 19/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 17ms/step - loss: 0.0179 Epoch 20/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0170 Epoch 21/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 24ms/step - loss: 0.0162 Epoch 22/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 29ms/step - loss: 0.0154 Epoch 23/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 19ms/step - loss: 0.0148 Epoch 24/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 21ms/step - loss: 0.0143 Epoch 25/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0138 Epoch 26/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 17ms/step - loss: 0.0132 Epoch 27/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 17ms/step - loss: 0.0130 Epoch 28/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 17ms/step - loss: 0.0125 Epoch 29/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 17ms/step - loss: 0.0123 Epoch 30/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0120 Epoch 31/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 18ms/step - loss: 0.0118 Epoch 32/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 17ms/step - loss: 0.0115 Epoch 33/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 18ms/step - loss: 0.0112 Epoch 34/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0111 Epoch 35/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 17ms/step - loss: 0.0108 Epoch 36/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0106 Epoch 37/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 15ms/step - loss: 0.0104 Epoch 38/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 17ms/step - loss: 0.0103 Epoch 39/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 15ms/step - loss: 0.0101 Epoch 40/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0099 Epoch 41/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0097 Epoch 42/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 17ms/step - loss: 0.0096 Epoch 43/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 22ms/step - loss: 0.0095 Epoch 44/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 17ms/step - loss: 0.0093 Epoch 45/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0092 Epoch 46/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 20ms/step - loss: 0.0091 Epoch 47/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0090 Epoch 48/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 17ms/step - loss: 0.0088 Epoch 49/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 15ms/step - loss: 0.0087 Epoch 50/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0086 Epoch 51/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 15ms/step - loss: 0.0085 Epoch 52/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 17ms/step - loss: 0.0084 Epoch 53/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 15ms/step - loss: 0.0083 Epoch 54/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0082 Epoch 55/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 15ms/step - loss: 0.0081 Epoch 56/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0080 Epoch 57/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 15ms/step - loss: 0.0079 Epoch 58/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 18ms/step - loss: 0.0078 Epoch 59/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 15ms/step - loss: 0.0077 Epoch 60/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0075 Epoch 61/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0074 Epoch 62/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0073 Epoch 63/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 20ms/step - loss: 0.0072 Epoch 64/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 18ms/step - loss: 0.0071 Epoch 65/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 17ms/step - loss: 0.0070 Epoch 66/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 19ms/step - loss: 0.0070 Epoch 67/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0069 Epoch 68/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 15ms/step - loss: 0.0069 Epoch 69/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 17ms/step - loss: 0.0068 Epoch 70/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 17ms/step - loss: 0.0068 Epoch 71/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0067 Epoch 72/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 17ms/step - loss: 0.0066 Epoch 73/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 17ms/step - loss: 0.0066 Epoch 74/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0065 Epoch 75/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0065 Epoch 76/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0064 Epoch 77/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 17ms/step - loss: 0.0064 Epoch 78/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 17ms/step - loss: 0.0063 Epoch 79/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 17ms/step - loss: 0.0063 Epoch 80/80 28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 15ms/step - loss: 0.0062
CNNRegressor(activation_hidden='leaky_relu', batch_size=64, metrics=[],
n_conv_layers=5, n_epochs=80,
optimizer=<keras.src.optimizers.adam.Adam object at 0x7bcda30b1d10>,
random_state=42, verbose=True)Please rerun this cell to show the HTML repr or trust the notebook.CNNRegressor(activation_hidden='leaky_relu', batch_size=64, metrics=[],
n_conv_layers=5, n_epochs=80,
optimizer=<keras.src.optimizers.adam.Adam object at 0x7bcda30b1d10>,
random_state=42, verbose=True)To verify the performance of the trained model, we now predict the target values for the test set and compute the root mean squared error (RMSE) between the predicted and true target values.
Keep in mind, that we have to inverse transform the predicted target values back to the original scale before computing the RMSE.
y_pred_scaled = regressor.predict(X_test)
y_pred = scaler_y.inverse_transform(y_pred_scaled.reshape(-1, 1))
rmse = root_mean_squared_error(y_test_raw, y_pred)
print(f"RMSE: {rmse:.4f}")21/21 ━━━━━━━━━━━━━━━━━━━━ 0s 11ms/step RMSE: 28.2592
The RMSE indicates that the model is not performing very well on this task.

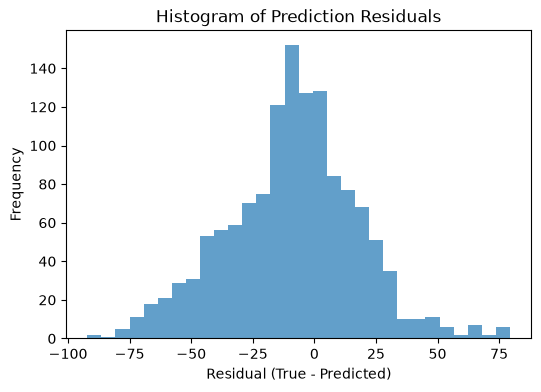

Let us visualize the residuals (the difference between the true and predicted target values) to get a better understanding of the model’s performance.
plt.figure(figsize=(6, 4))
plt.hist(y_test_raw - y_pred.flatten(), bins=30, alpha=0.7)
plt.xlabel("Residual (True - Predicted)")
plt.ylabel("Frequency")
plt.title("Histogram of Prediction Residuals")
plt.show()

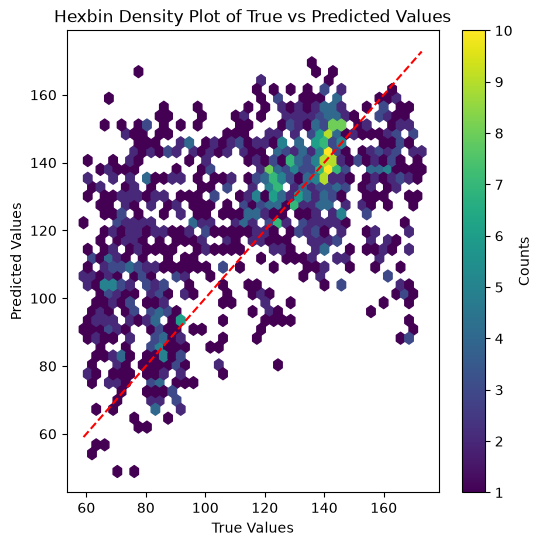

A scatter plot showing true against predicted values reveals that the model tends to overestimate smaller values and underestimate larger values.
plt.figure(figsize=(6, 6))
plt.hexbin(y_test_raw, y_pred.flatten(), gridsize=40, cmap="viridis", mincnt=1)
plt.xlabel("True Values")
plt.ylabel("Predicted Values")
plt.title("Hexbin Density Plot of True vs Predicted Values")
plt.plot(
[y_test_raw.min(), y_test_raw.max()], [y_test_raw.min(), y_test_raw.max()], "r--"
)
plt.colorbar(label="Counts")
plt.show()
Especially when encountering a model that performs worse than expected, it is important to analyze potential reasons for this behavior.
Here, we predict the training set using the trained model. Usually, the training error should be significantly lower than the test error. If this is not the case, we can suspect issues with the code, model (architecture) or with the data itself.

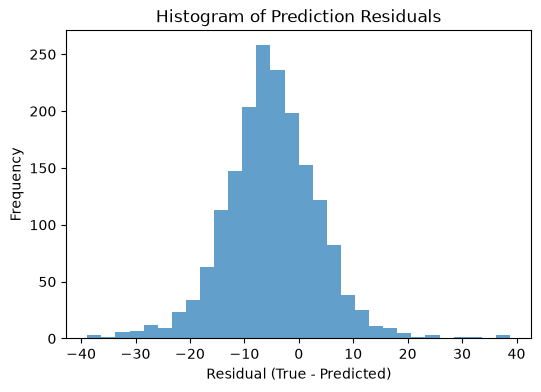

Plotting the histogram of residuals on training set
y_pred_train_scaled = regressor.predict(X_train)
y_pred_train = scaler_y.inverse_transform(y_pred_train_scaled.reshape(-1, 1))
plt.figure(figsize=(6, 4))
plt.hist(y_train_raw - y_pred_train.flatten(), bins=30, alpha=0.7)
plt.xlabel("Residual (True - Predicted)")
plt.ylabel("Frequency")
plt.title("Histogram of Prediction Residuals")
plt.show()28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 7ms/step

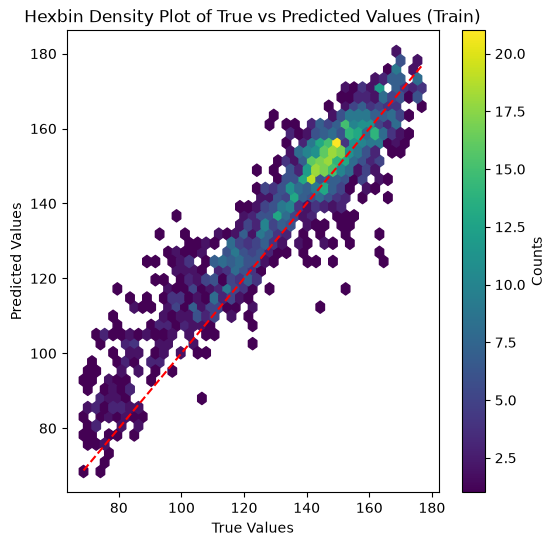

Plotting the scatter plot of true vs. predicted values on training set
plt.figure(figsize=(6, 6))
plt.hexbin(y_train_raw, y_pred_train.flatten(), gridsize=40, cmap="viridis", mincnt=1)
plt.xlabel("True Values")
plt.ylabel("Predicted Values")
plt.title("Hexbin Density Plot of True vs Predicted Values (Train)")
plt.plot(
[y_train_raw.min(), y_train_raw.max()],
[y_train_raw.min(), y_train_raw.max()],
"r--",
)
plt.colorbar(label="Counts")
plt.show()
The model is able to fit the training data quite well, indicating that the code is implemented correctly and the model architecture is complex enough to capture the underlying patterns in the data. Still, the performance on the test set is significantly worse than on the training set. This suggests that the model is likely overfitting the data, which could be due to various factors such as e.g. insufficient training data, or lack of regularization or that the test data distribution differs significantly from the training data distribution.
While these results are not fully satisfying, the results align with those reported by Tan et al. (2021) for other simpler neural network architectures on this dataset.
